MAX1463 Two-Channel Signal Processor

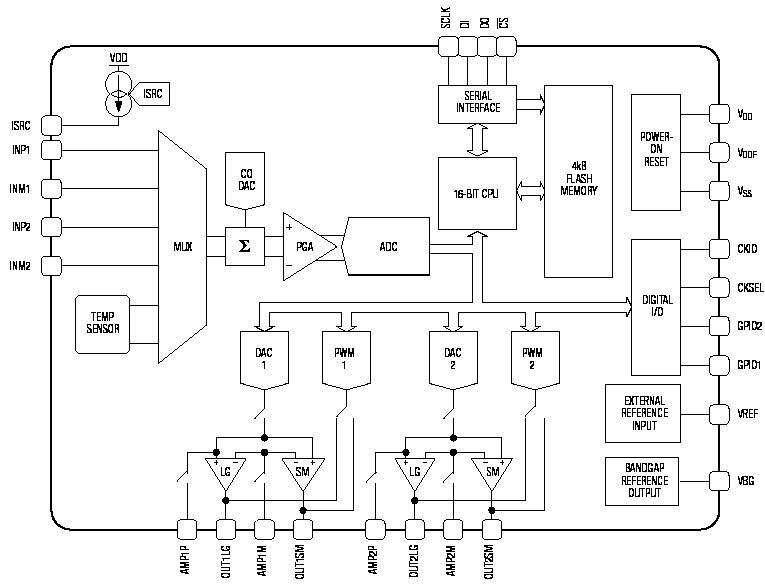

The MAX1463 is a highly integrated, low-power, two-channel sensor signal processor optimized for industrial and process control applications.

Download Maxprg1.exe
Windows 95, 98, 2k, XP
Delphi 3 source files

MaxProg1.exe

Free Maxim MAX1463 Signal processor Compiler, Simulator and Debugger

Installation

Extract MaxProg1.zip to certain folder.
Simply start the MaxProg1.exe executive or make a shortcut to it.
See help for how to use the program.

The program is freeware.

The compiled machine code can been tranferred to the MAX1463 chip.

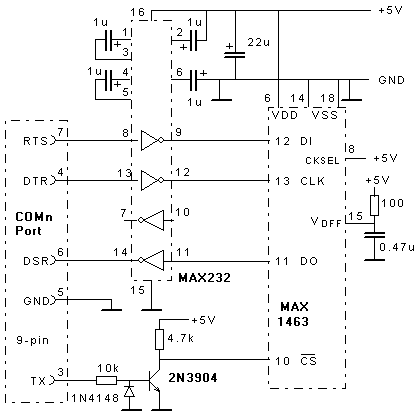

Connect the MAX1463 to the Com port of the PC according to the diagram
